Alarm systems
When tasks have not been performed or when the result of an analysis is not good, Mafuta will show a visual representation of the alarm. In this feature you will see an introduction to the workings of the various alarms.
Visual representation of alarms

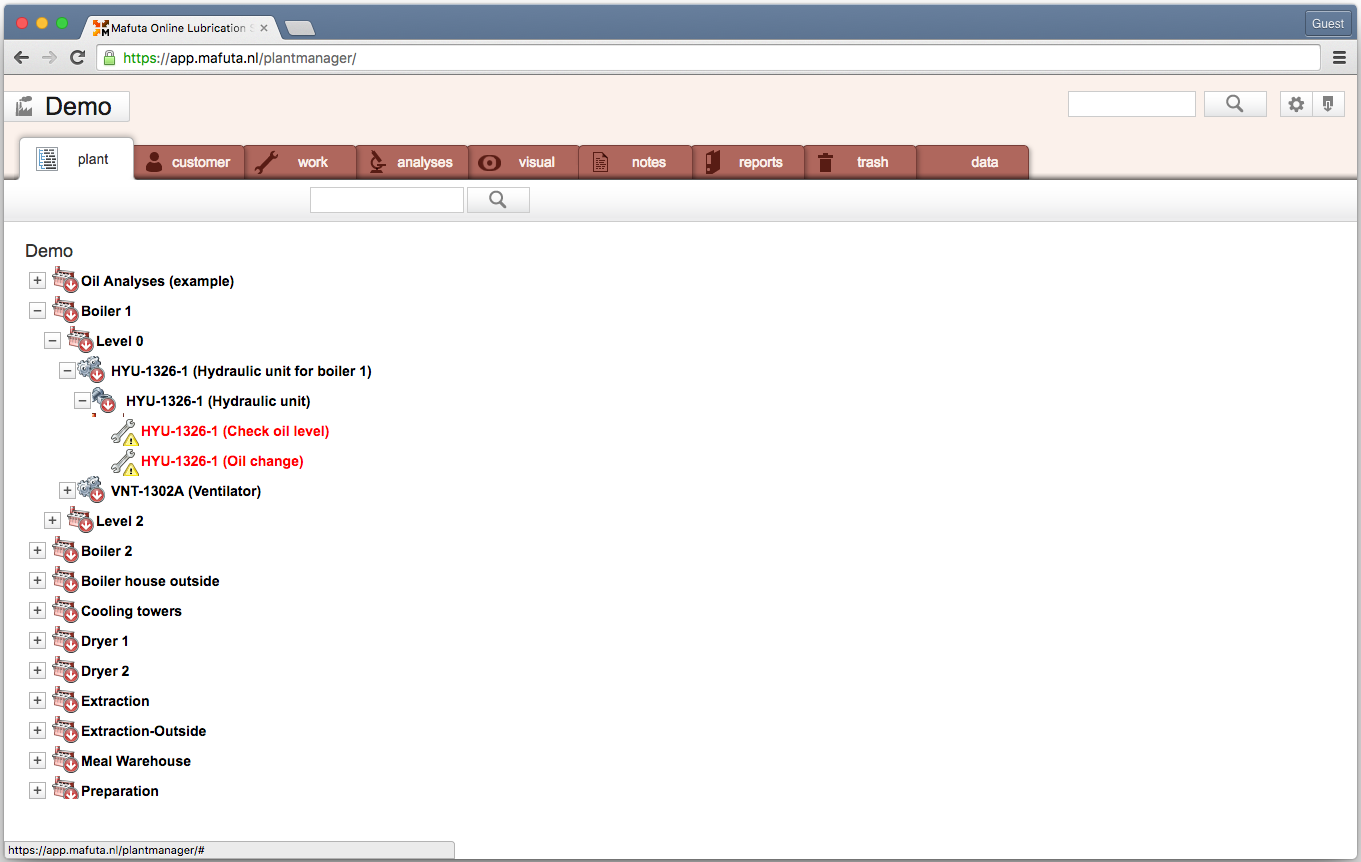

The plant tab can display different plants in a tree structure. The different parts of the plant are represented by different symbols. When tasks have not been performed or when the result of an analysis is not good, a visual representation of an alarm will be shown in the plant tree.
- A warning triangle means a workorder had to be carried out before date X, but is too late. The value can also be seen in the analysis overview.
- A yellow exclamation mark means the lab has evaluated the sample and has given the alarm due to this.
Alarm priority

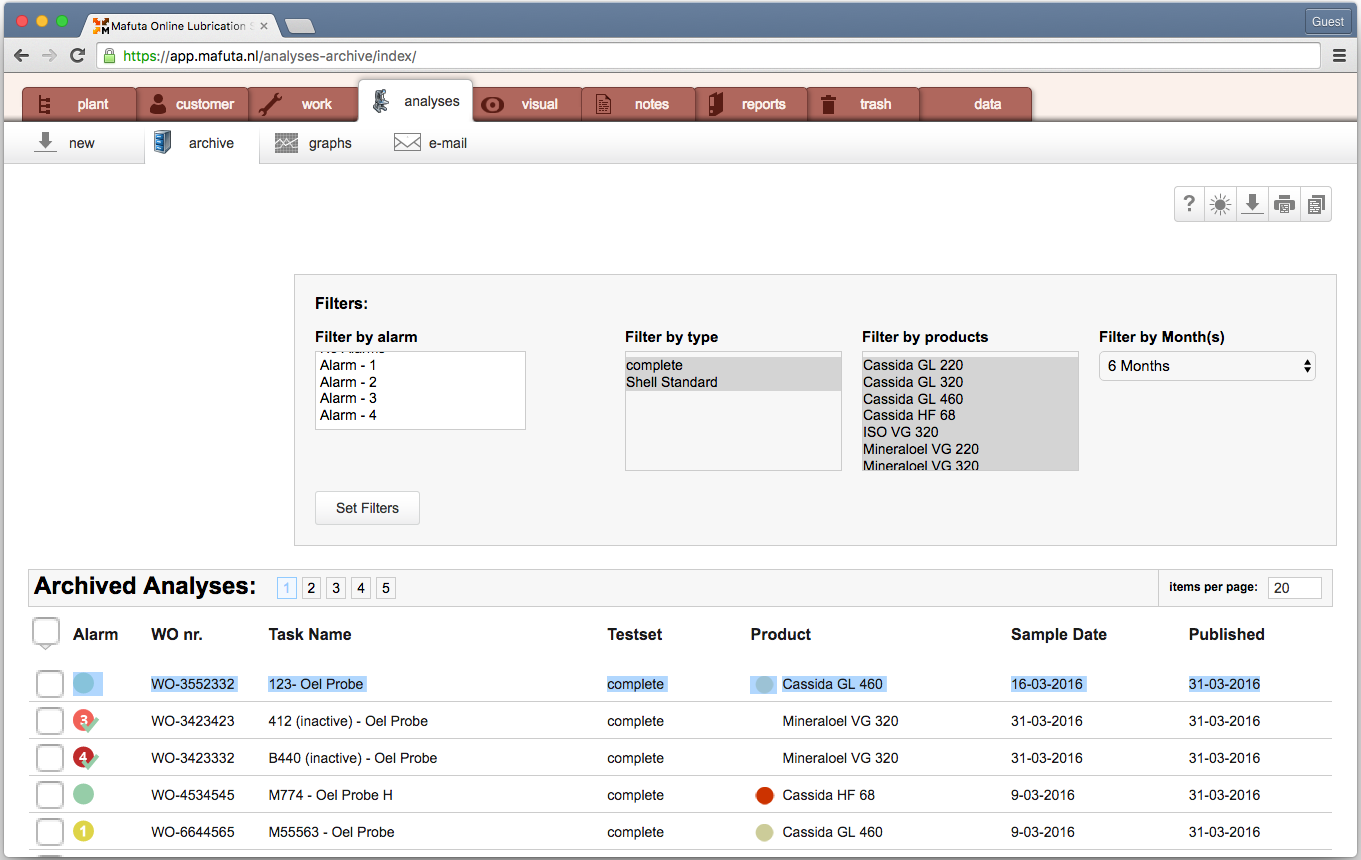

The alarms shown in the analysis archive either have the color yellow or numbers ascending from 2-4, depending on how critical the alarm is. A checked alarm means the alarm has been seen in the plant.
